About Guitar Effect Pedal Power Supply

Guitar Effect Pedal Power Supply –┬áThis article arises from a problem that is often asked or experienced by beginner guitarists, even some guitarists who have enough experience. I briefly described the situation to my super friends, as a guitarist, having a row of effects pedals stored on the pedalboard becomes a dilemma that requires special treatment. A simple problem that is very clearly visible is the use of an adapter or battery which must definitely serve the effect pedals one by one or switch to a more solid form by using a pedal power supply. But, maybe my friend is thinking, where and where should I start? Let’s take a look at the options for powering all of your pedals from a single supply, and this article will show you a few that we find useful so that your purchase doesn’t go to waste.

Why is this Guitar Effect Pedal Power Supply needed guitarist or base??? The answer is simple, if you want to have a power supply for your effects pedal that can also maintain sound quality, allowing you to use the pedal to its full capacity, then you really need a power supply. To power multiple pedals, 9V batteries are very unreliable and should be used sparingly, especially if you want to pursue a career as a musician. Basically, a power supply functions to supply power according to the needs of your effect pedal. Also, unlike a 9V battery, you can leave the pedal plugged in and it won’t drain any power. That means you only need to spend deep enough just once, but then you don’t have to think about the hassle of buying batteries and replacing them every time you need them during a gig or practice. This power supply also saves time because the pedalboard will look neat because the adapters that are plugged one by one on the effects pedal will look messy.

It’s fair to say most pedals can run on 9V DC – that’s the power the box battery supplies – however, some pedals require more voltage – 12V, 18V, or even 24V. What’s more, some pedals have a high current draw, which the battery cannot supply, so will rely on a power adapter, usually supplied by the manufacturer.

The best thing you can do before buying a Guitar Effect Pedal Power Supply is to check the voltage. Most pedals, such as the BOSS and MXR, require a typical 9V of power so almost any pedal supply can be provided. However, some do require a higher power supply like some of the older Electro Harmonix pedals but usually, if something requires a higher supply, the manufacturer will include a suitable power supply. As an important note, never plug an adapter with the wrong voltage into the pedal as this will damage the pedal. My experience should not happen to all super friends, there was once because I was too hasty I didn’t pay attention to the voltage supply so that the power supplied was greater than the needs of the effects pedal. As a result, my effects pedal finally exploded.

Several manufacturers have produced power supplies that are ideal for beginner or intermediate guitarists. Just look at the Dr tone PSU10 which is cheap and can serve or provide 9V power for 10 effects pedals.

Dr tone PSU - Guitar Effect Pedal Power Supply

The next thing to check is the amount of current needed to start the pedal which is measured in milliamps (mA). Most pedals, such as analog distortion, drive, fuzz pedal, and wah pedal will have a low current requirement of around 20mA or less, so again you don’t have to worry about anything but some Strymon pedals which do require higher currents. So make sure to check it out first.

The thing to remember here is that too much current is okay, but if there isn’t enough current the effects pedal won’t work, but too much won’t damage it either.

Jim Dunlop DC Brick

One recommendation is the Jim Dunlop DC Brick which has an industry-standard supply of pedals that might be easy to find on a professional grade pedalboard because of the amount of power it puts out. This DC Brick has seven 9V outputs for a total of 1000 mA, which helps ensure all pedals get the right amount regardless of how many you plug in at once. As an added feature, there are three 18V outputs, so if you have an 18-volt effects pedal like the old Electro Harmonix Deluxe Memory Man or Pigtronix pedal, you can be sure it’s protected. This DC Brick is also built to last.

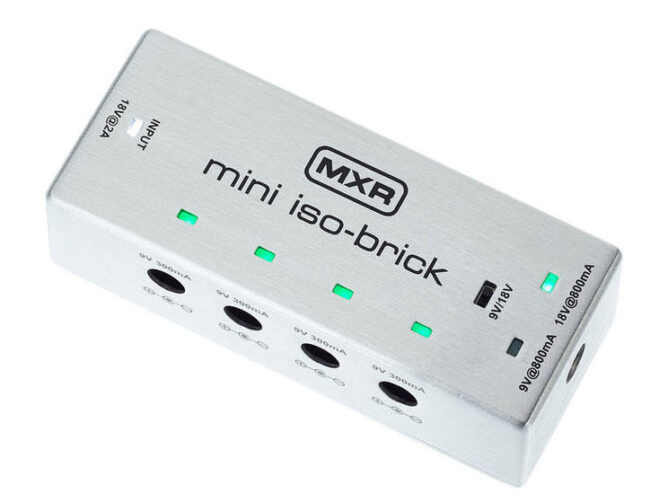

mxr iso brick

Isolated Power

Another mandatory thing that must be known is Isolated Power. Basically isolated power functions to reduce unwanted noise or hum that can occur in low-quality power supplies. This means that each output is completely electrically isolated and each pedal gets a suitable power supply. In addition, the isolated power supply will provide a full power supply which is usually scattered on the road due to the use of a delivery cable from the power supply to the effects pedal or often called a daisy chain.

powerstation for Guitar

You may also like:

So which Guitar Effect Pedal Power Supply is right? Everything is returned to the needs of your effects pedal. You may have pedals that require 9V and 250mA – 300mA like the Strymon for example or have a myriad of regular pedals that only pull a little, however, you have to make sure that the effects pedal gets the right amount of power supply every time. If that doesn’t happen, then the chances of getting the ideal guitar sound from your pedals will be difficult to realize. If you use a simple analog pedal then Dr. Tone or DC Brick will suffice, but if you have a choice of different digital pedals that require higher Voltage or current, then something like the MXR M238 ISO Brick Power Supply might be for you. In essence, a power supply is a must-have for serious musicians. You don’t have to spend a lot of money to get the power you need, but it will always cost you less in the long run compared to buying 9-volt batteries all the time!!!!
